Apache Balnaves FPSO Development Project

Scope

Apache awarded the installation of subsea equipment for their Balnaves Development to Technip Oceania. Cube was subcontracted to provide design of installation aids and general construction engineering support.



Outcome

Structures included:

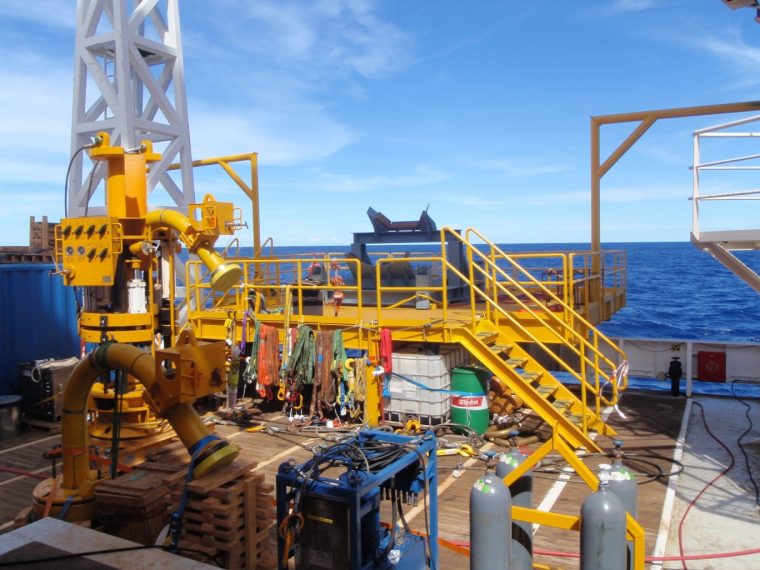

  • Install jig for subsea gooseneck connections

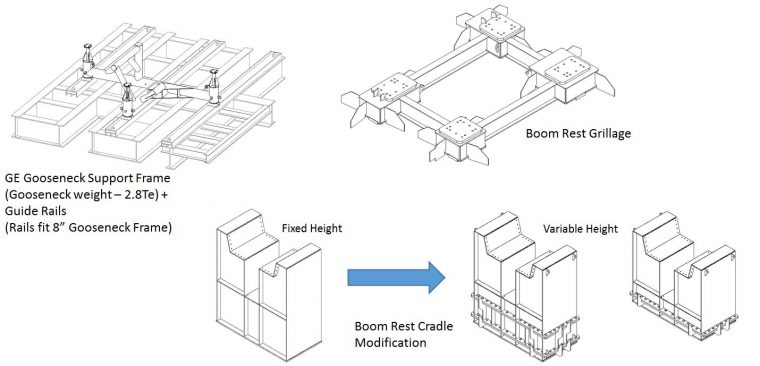

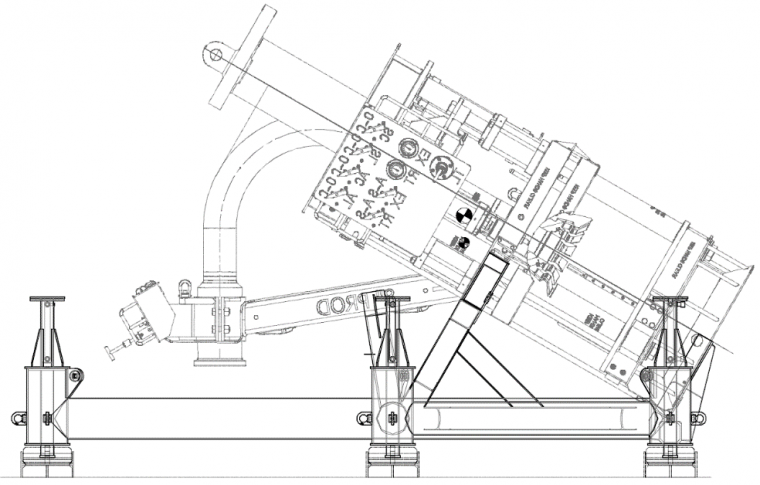

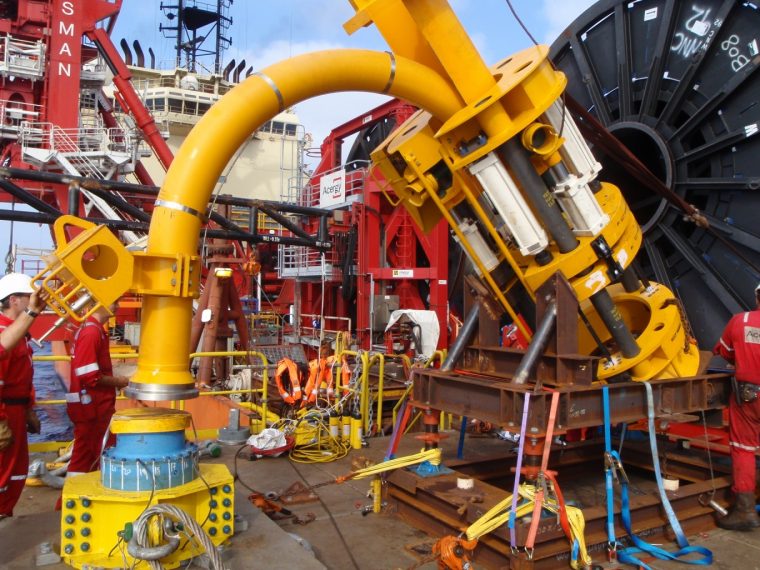

  • A multi-purpose support frame each gooseneck.┬áDuring deployment, the support frame needs to slide, tilt and raise or lower to align the gooseneck with flexible pipes for connection.
  • Lift spreader
  • Chain hang-off plate
  • A new crane-boom rest foundation

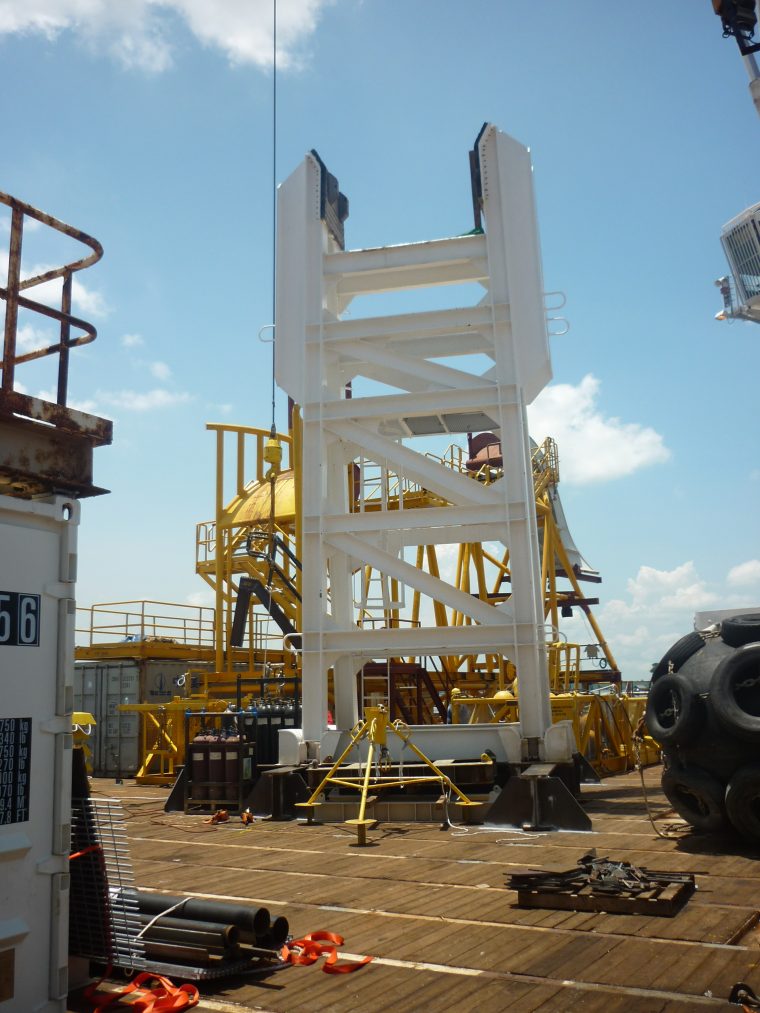

  • An extension to the existing crane boom rest.

In preference to seconding engineers to Technip, all work was performed in Cube’s office on an as required basis to reduce cost. This strategy for outsourcing proved successful.

Cube successfully delivered designs on time, with minimal supervision, without major variations and under budget.
