The Challenge
The Linda Platform Boat Fender and Access Ladders were heavily corroded and had been taken out of service. With the helipad also out of service due to suspension of production, this limited maintenance access to the platform.

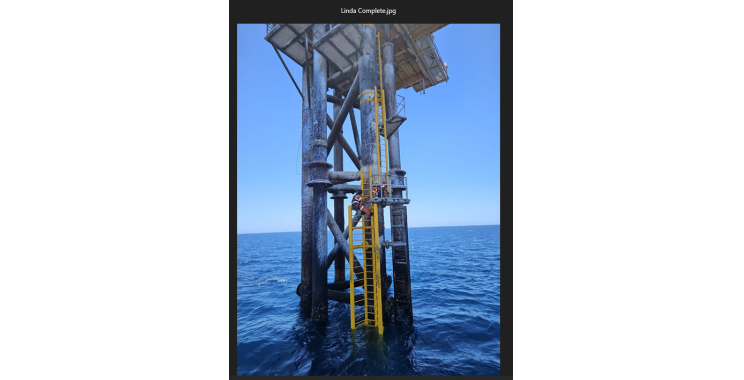

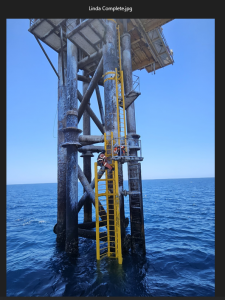

The Solution
Cube carried out a detailed assessment of the Boat Fender and Access Ladders and devised a cut & removal lift plan using static rigging and rope access techniques.
Replacement Fenders and Access Ladders were designed to meet 100-year cyclonic storm loading and boat impact loads. Linda Platform point cloud data was imported into our 3D modelling software to ensure offshore installation was unobstructed and clash-free. Detailed transport, lift, and fit-up considerations ensured a quick, safe, and efficient installation.
The Scope
Cube delivered the following scope:
– Basis of Design
– Structural concept & constructability
– Detailed structural engineering of 1 x Boat Fender and 2no. Upper Access Ladders
– Detailed structural drawings of 1 x Boat Fender and 2no. Upper Access Ladders
– Cut & removal Lift Plans for the existing Fender & Ladders
– Installation Lift Plans for the replacement Fender & Ladders
– Installation Procedures
– HAZID involvement
Airscope point cloud image Combined point cloud data & 3D model combined
Navisworks 3D model of new Fender & Ladders New Fender elevation
Typical installation schematics
