VOGA Offshore Basket Design – DNV 2.7-1

The Challenge:

VOGA required a new basket design for the transport of 4 x chemical Bulki Bin tanks offshore.

The Solution:

Cube Offshore were engaged to develop a basket design in accordance with the requirements of DNV 2.7-1

The design encompassed the following attributes:

  • Secure offshore transport
  • Chemical containment in the event of tank rupture
  • Ease of tank rigging access for personnel
  • Avoidance of tank rigging snag points.

The Scope:

The scope of work included:

  • Concept development
  • Detailed design in accordance with DNV 2.7-1
  • Detailed drawings for fabrication
  • Fabrication specifications in accordance with DNV 2.7-1
  • Certificate of Compliance for Lifted Equipment (CCLE)


Structural member code check / compliance                              Plated sides FEA – Von Mises Stress Plot

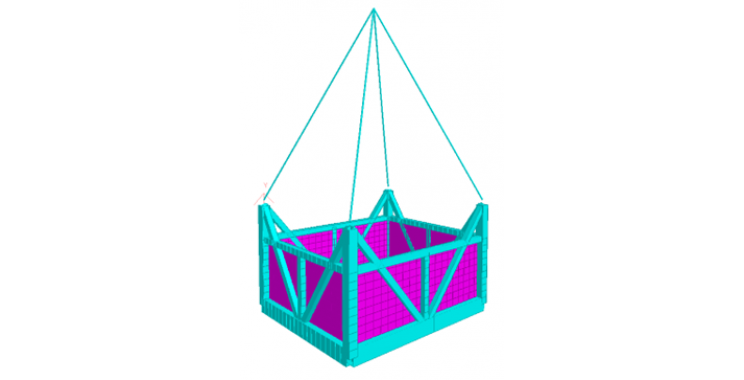

Lift configuration / rigging schematic
