General Basket/Frame Design & CCLE

Scope

Halliburton required analysis, design and certification of the following for offshore lifting and handling:

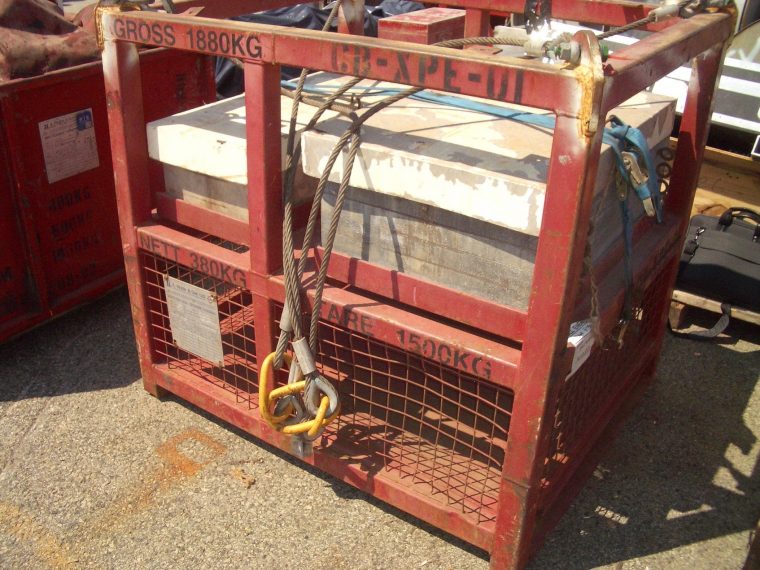

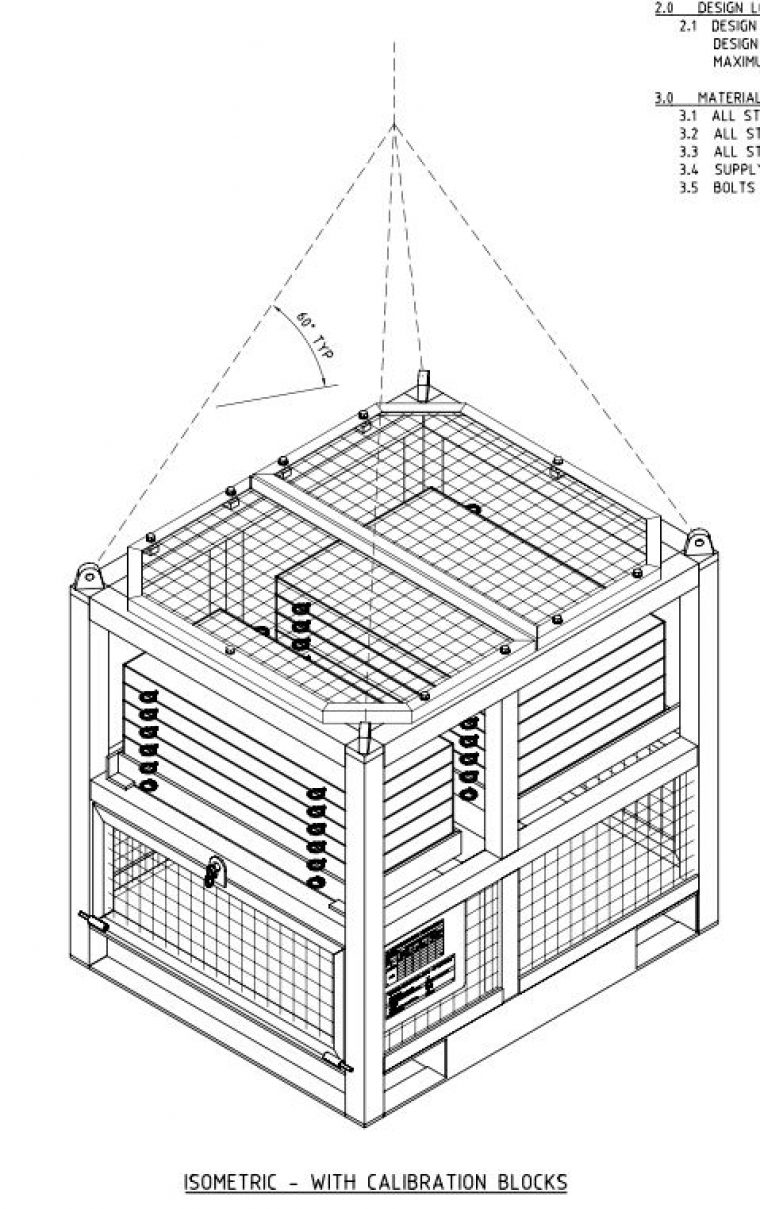

  • Calibration Block Basket

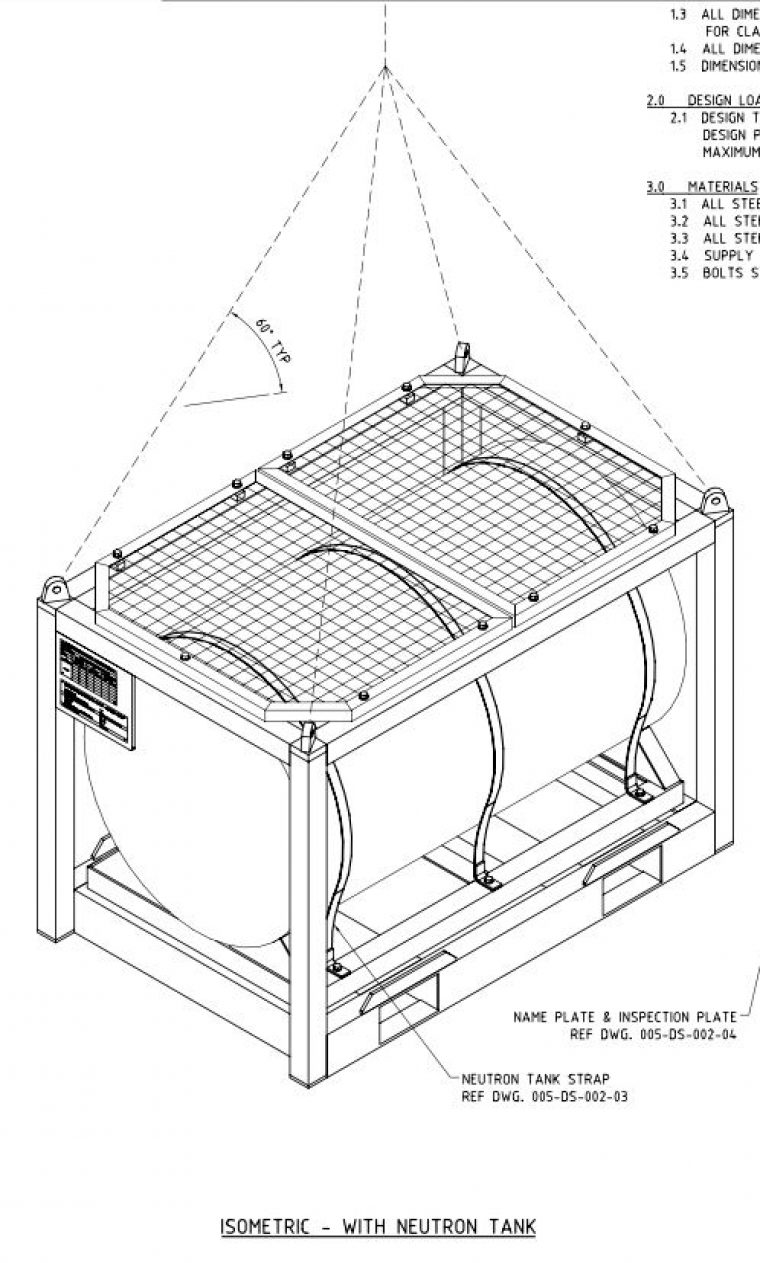

  • Neutron Tank Basket

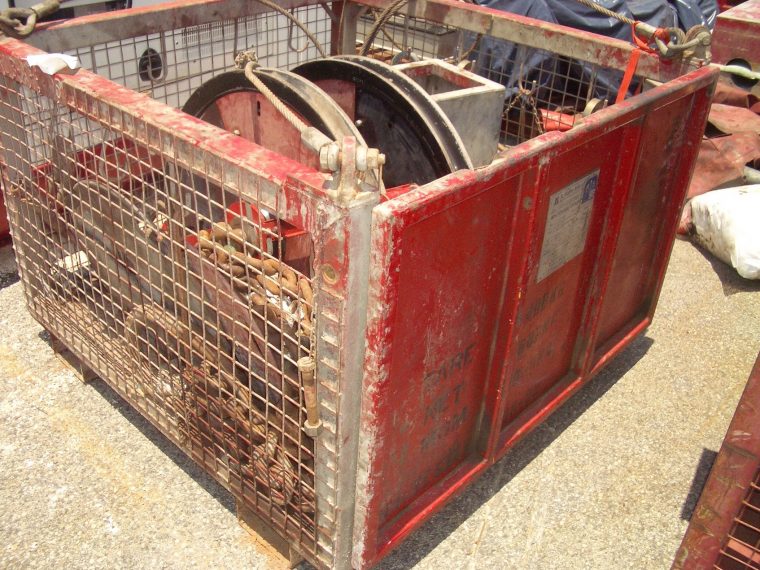

  • Sheave Transport Basket

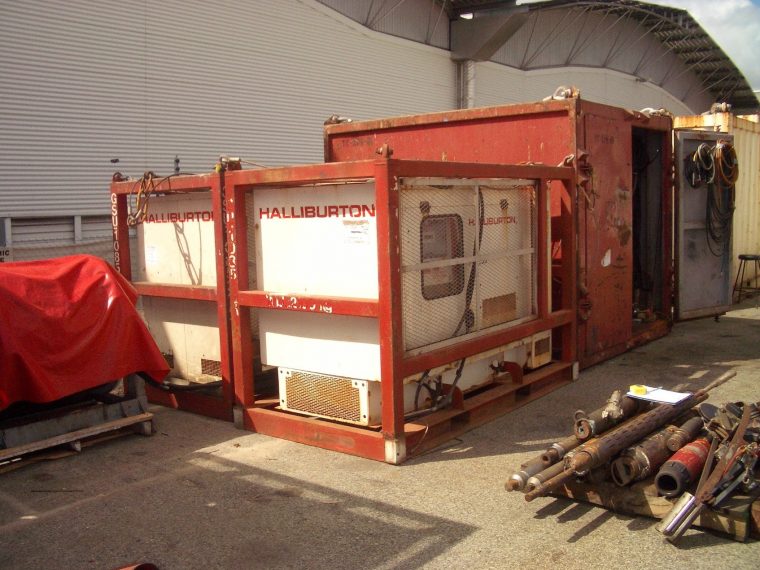

  • Genset Lift Frame
  • Rigging for all of the above.

Halliburton required design and certification to EN 12079 and supervision of fabrication.

Outcome

Cube successfully designed, supervised fabrication, load testing and issued Certificates of Compliance for Lifting Equipment (CCLE) for 3 baskets and a lift frame (including rigging).

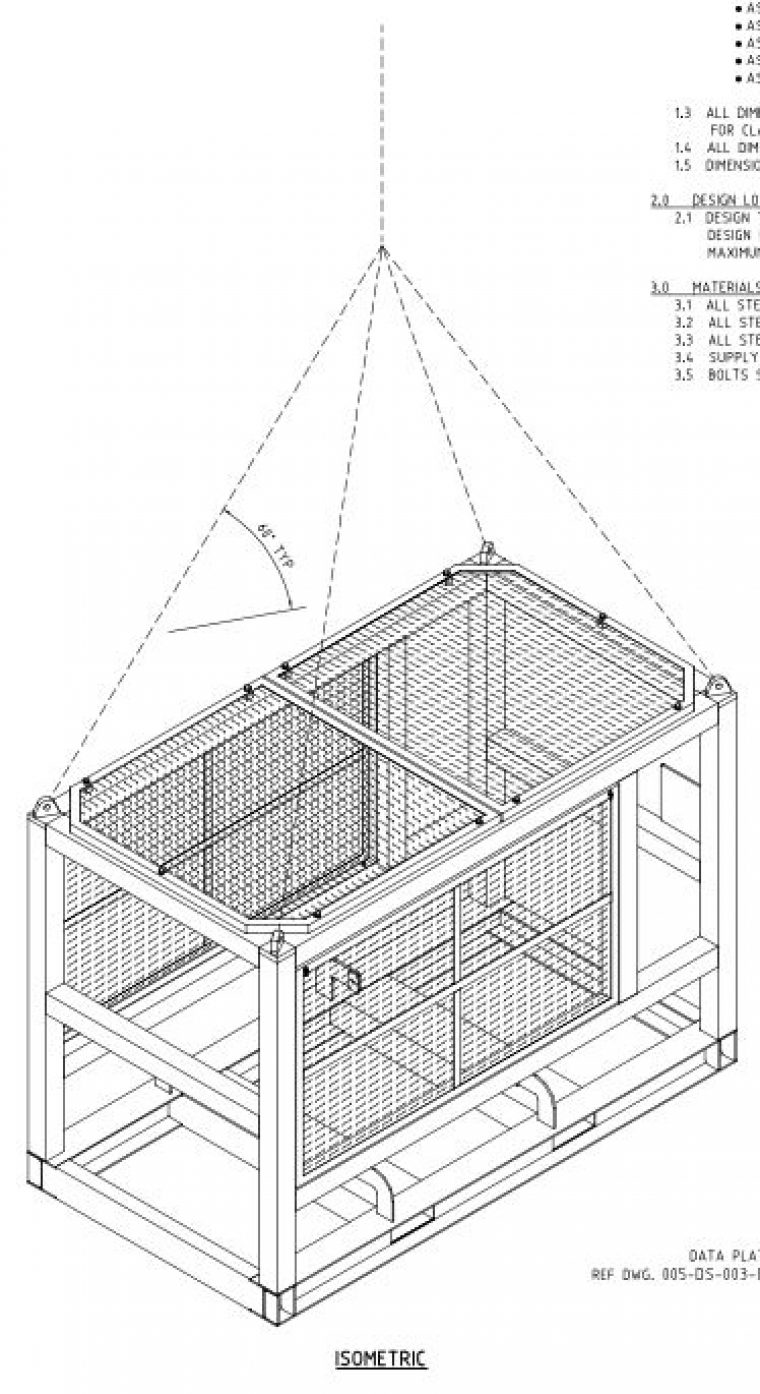

Photos & 3D Isos
