Technip Wheatstone Subsea Installation Support – Installation Aid Design

Scope

To assist Technip with structural engineering services to execute the subsea installation scope of Chevron’s Wheatstone project. Cube was engaged to design temporary structures and rigging to facilitate safe installation of subsea equipment. Analysis was required to confirm loads and structural integrity.



Outcome

Cube Offshore generated designs for and analysis of the following items.

  • Spool Lift analysis
  • Several spool spreader lift frames and rigging

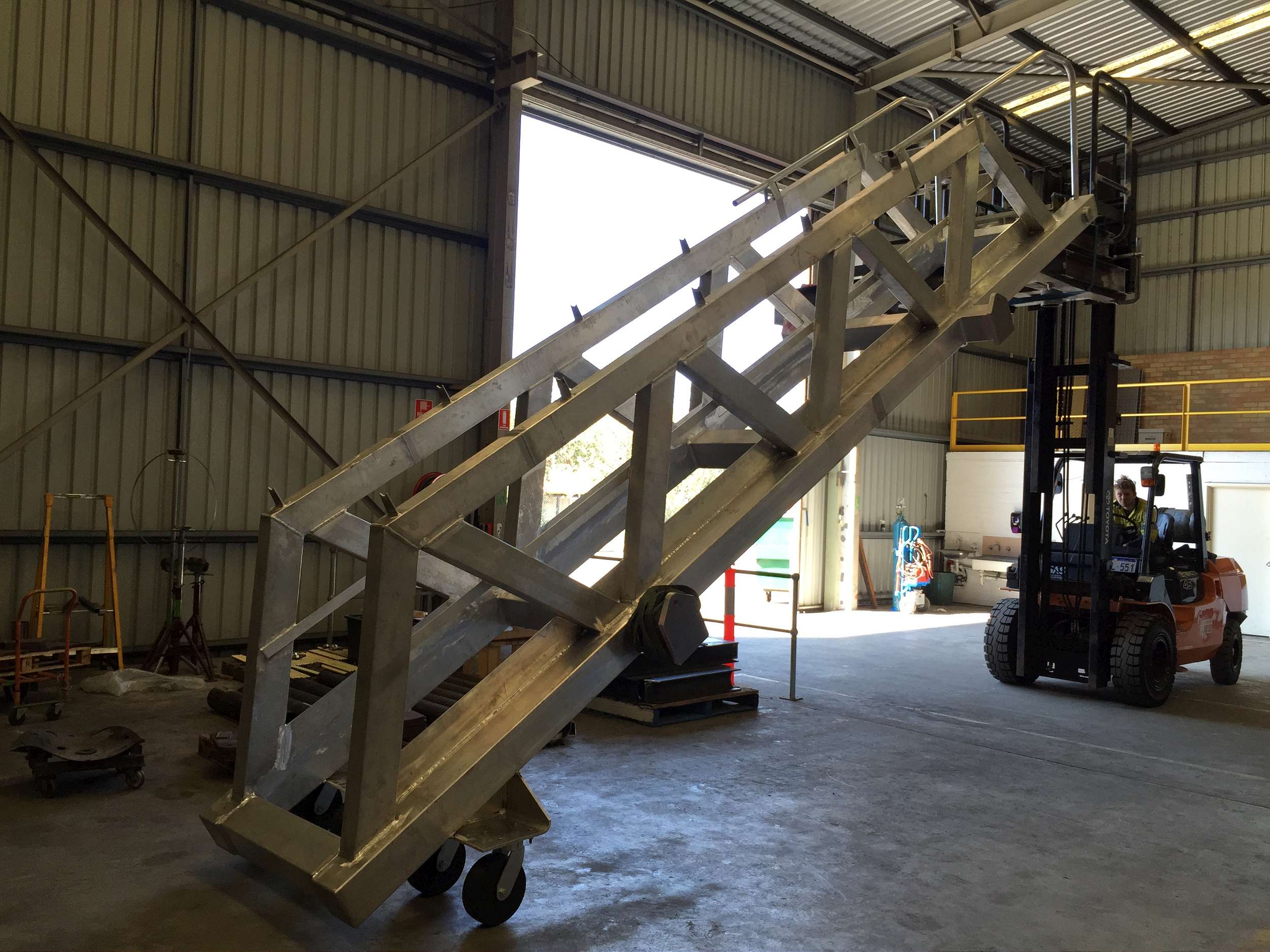

  • Aluminium Gangway for safe personnel access to barge offshore. A hinged and rotating design was required.
  • A HIAB Crane foundation. The HIAB crane deployed and handled the aforementioned gangway.
  • A gangway rest support
  • An interface frame to connect and support to Control cabins.
  • An Electrical Flying Lead (EFL) deployment Frame
  • A Pig Launcher and Recovery (PLR) Frame
  • A Spool Flange Catcher
  • A Diver Support Stand
  • Access Platforms
  • Subsea and Offshore Rigging designs for items above.
  • Seafastening design for the items above.
  • Spool metrology and as-builts.

The work scopes above required significant collaboration with Technip engineers – both project and structural.
